“Black Panther” Piston Pins/Wrist Pin

Description: “Black Panther” Piston Pins are often known as Gudgeon pin or wrist pin. A simple and un-important looking part usually neglected on quality parameters.

But “Black Panther” knows how important are the parameters of Piston pin and how costly it would be if quality of these pins are neglected.

“Black Panther” has in-house facilities of making Piston/Gudgeon/Wrist pins from bars.

“Black Panther” manufactures Piston/Gudgeon/Wrist pins in semi floating (interference fit) and full floating (often termed as Thumb push).

Capacity: “Black Panther” Produces 600,000 Pins annum

Raw Materials: The raw material used are virgin crack free fully tested steel grades of 15Cr3, 20MnCr5, 16MnCr5/16HG, SAE8620 or any other custom made Material.

Heat Treatment & Hardening Facilities: The Salt bath heat treatment for hardening and tempering to achieve required hardness and case hardening depth is done outside from Specialists.

Machine Shop Facilities: Pins are made on SPM’s, CNC machine to achieve finishing as well as close tolerances on Face & Bore, The outer diameter is maintained within 3 microns for taper, Ovality using center-less cylindrical grinding machine and super finishing machines. Length is made on duplex grinding machine

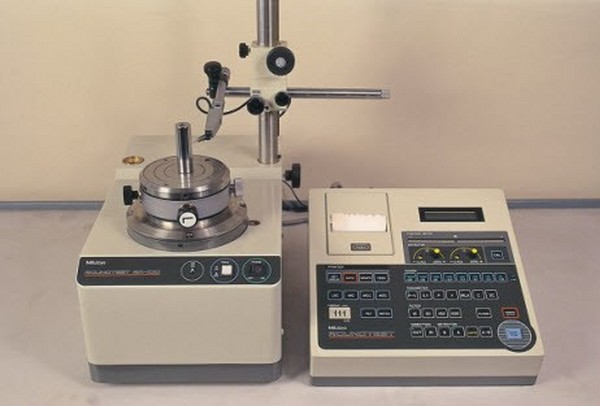

Quality Control & Inspection: Inspection is done using High end various measuring instruments including Roundness tester.

Range: Piston Pins/Wrist Pins are offered in various size up to Diameter of 75 mm & Length up to 200 mm

“Black Panther” produces Piston Pins/Wrist Pins compatible to Mahle reference number.

“Black Panther” produces Piston Pins/Wrist Pins compatible to KolbenSchmidt reference number.

“Black Panther” produces Piston Pins/Wrist Pins compatible to Original equipment manufacturer (OEM) reference number.

“Black Panther” produces Piston Pins/Wrist Pins as per customer’s specification & design. (Custom products)
